DHR331 is a optical receiver IC for the high-speed digital audio communication using a plastic optical fiber(POF).
- Feature
- High speed operation (100Kbps ~ 30Mbps)
- High sensitivity operation for red light of 650nm peak wavelength
- Wide supply voltage range (2.4V ~ 5.5V)
- Low power consumption
- Low quiescent current

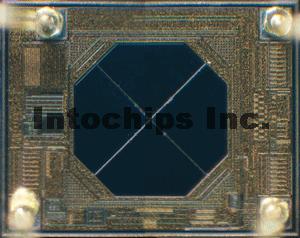

- Chip Photo
- Reliability
- HBM CLASS 3B (>8000V) - JS-001-2012
- MM CLASS C (>400V) - JESD22-A115C:2010
- CDM CLASS IV (>1000V) - JESD22-C101E:2009
- Applications
- Digital Audio
- Speaker
- S/PDIF applications with TOSLINK
- Package & Housing Example for application
- Application Examples
- Application Connection Examples
